Apex Panel
Modern metal roofing at an affordable price
Your Roof, Unstoppable Steel

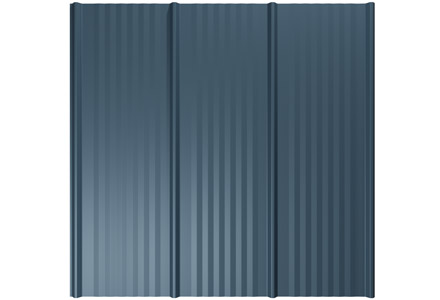

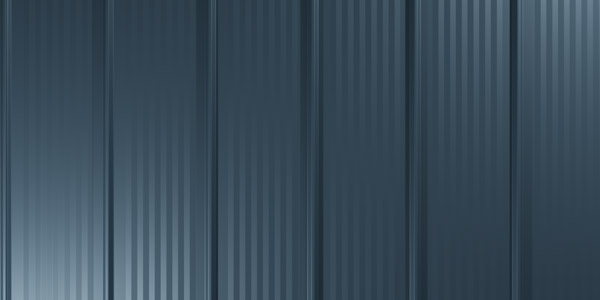

Forging a new path, Apex Panel is a uniquely capable, unmistakably beautiful metal roof panel. Four modern style ribs combine with low-profile striations for just the right look. For projects where you want a look similar to standing seam, but the price point and faster installation of through fasten panels.
Design & Size

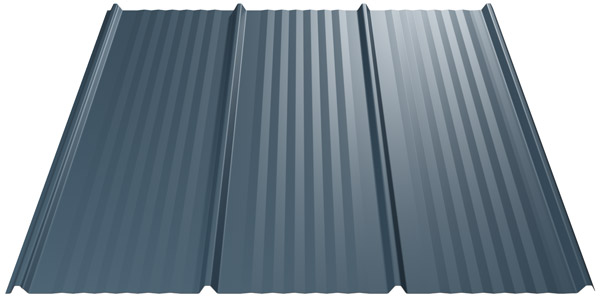

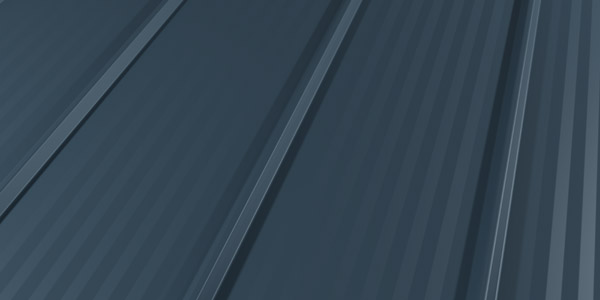

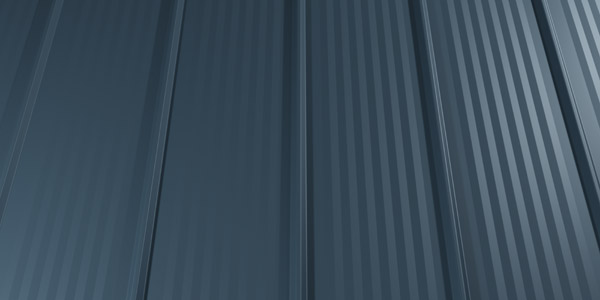

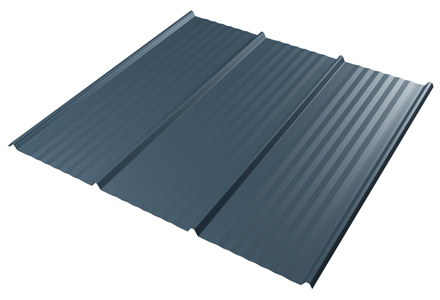

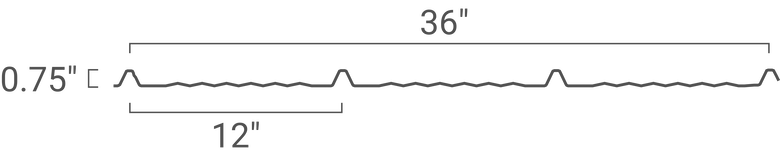

We manufacture Apex Panel custom cut to the inch per your specifications. Any length is available from 3′ up to 45′. Apex design features four 3/4″ high ribs, spaced 12″ on center.
Size
36" Width (Coverage)
Cut to Inch From 3'–45'
Gauge & Weight
29 Gauge - 0.70 lb / Sq Ft
26 Gauge - 0.85 Lb / Sq Ft
Warranty & Finish
Painted Apex Panel carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.
Finish & Warranty
Painted: 50 Years
Galvalume: 45 Years
Reflectivity
25-67%
Hi-Reflective
Purpose & Use
An integrated anti-siphon groove on panel laps allows Apex Panel to be installed on roofs as low as 2.5:12. Strong 3/4″ modern-quad ribs enable installation over solid deck and open frame applications.
Apex Panel is at home on residential applications, but functions well as a light commercial panel as well.
Minimum Slope
2.5:12
Substrate
Solid Deck
Open Frame
Intent
Residential
Light Commercial
Category
Colors
Pure White
Ivory
Stone
Clay
Sierra Tan
Brown
Light Gray
Charcoal
Bronze
Black
Bright Red
Barn Red
Burgundy
Hawaiian Blue
Gallery Blue
Forest Green
HD Black (Premium)
HD Forest Green (Premium)
HD Charcoal (Premium)
HD Barn Red (Premium)
HD Bronze (Premium)
HD Copper Penny (Metallic Premium)Painted Apex Panel finishes are Hi-Reflective, reflecting 25-67% of the sun’s rays.
Available colors vary by branch and gauge. Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
