Matterhorn Slate
Stands out by day, protects by night.
Luxurious Shelter
CERTAINTEED DISCONTINUED MATTERHORN ROOFING EFFECTIVE 12/31/20. CONSIDER ONE OF OUR OTHER METAL SLATE ROOF SYSTEMS.

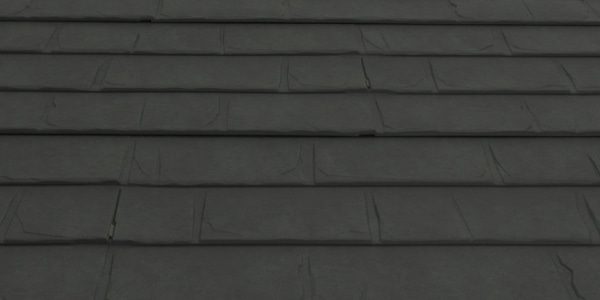

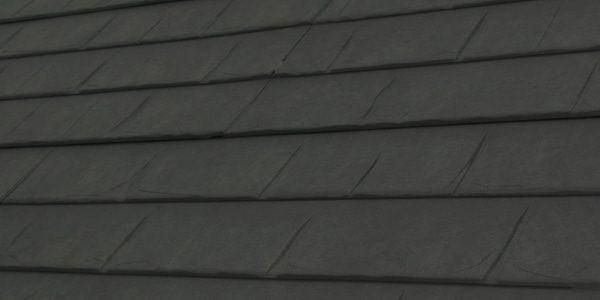

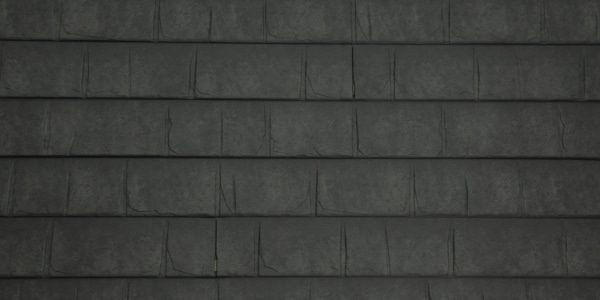

Matterhorn Slate, often referred to as Presidio Slate in the West, provides the luxurious and natural ambiance of hand-hewn quarried slate roofing. Chiseling and cracks are used to mimic the organic look of natural slate, and both embossing and weathered paint selections round out the appearance. A four-point interlocking system, tough 28 gauge steel and baked on Hylar/Kynar paint finish ensure strength and longevity.
Design & Size

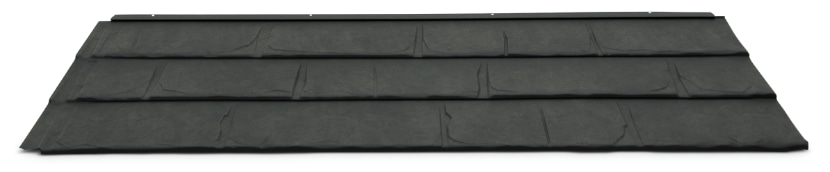

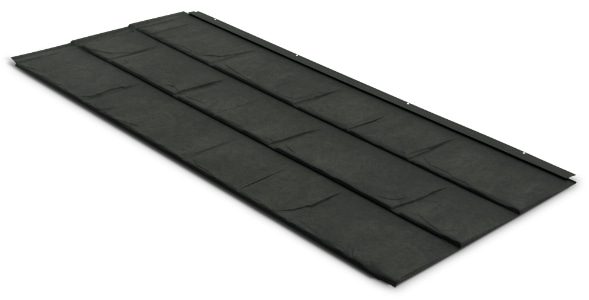

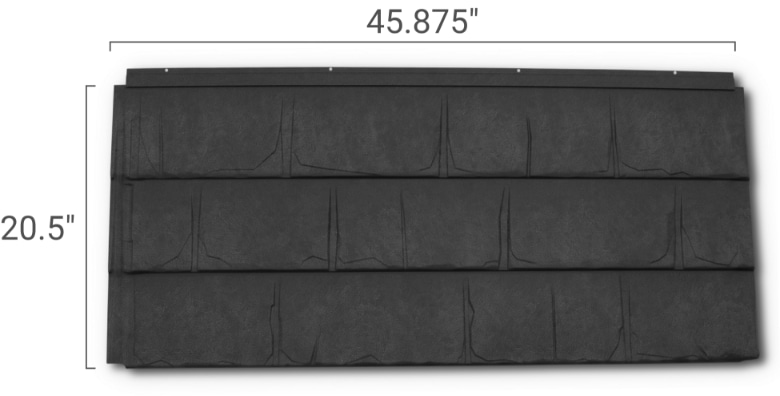

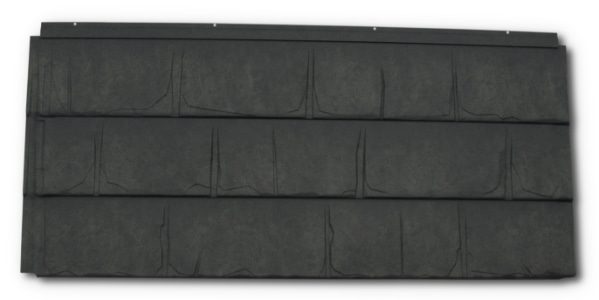

We provide Matterhorn Slate in 1/2 SQ boxes (50 square feet). Each box contains 8 shake panels. Each panel is 22.125″ high by 47.5″ wide and covers 20.5″ high x 45.875″ wide once installed.
Size
Actual: 22.125" high by 47.5" wide
Coverage: 20.5" high by 45.875" wide
Gauge & Weight
28 Gauge - 0.90 lb / Sq Ft
Warranty & Finish
Matterhorn Slate carries a lifetime limited warranty which covers manufacturing defects, paint, fade/chalk, hail, and 110mph wind (130mph if using 7 screws per panel instead of 4). This warranty is transferable to 1 subsequent homeowner but becomes a 50 year warranty for defects, paint, hail and wind and 30 year warranty for fade/chalk. The finish is a Kynar 500® / Hylar 5000® PVDF baked-on enamel paint over primer and G90 Galvanized steel.
Finish & Warranty
Lifetime Limited
1 Time Transferable
Reflectivity
6-26%
2 Hi-Reflective Colors
Purpose & Use
A 4-way interlocking design and hidden fasteners make Matterhorn Slate a great choice for roofs as low as 3:12 (full ice & water shield underlayment required on slopes less than 4:12). Matterhorn Slate is designed for installation on solid deck applications.
Matterhorn Slate is most often chosen for residential applications but functions well on light commercial roofs also.
Matterhorn Slate is Florida Building Code approved as well as passing Texas Windstorm and UL90 wind uplift testing. (not approved for HVHZ / High Velocity Hurricane Zones).
Minimum Slope
3:12
Substrate
Solid Deck
Florida Approvals
Florida Building Code
Intent
Residential
Light Commercial
Category
Colors

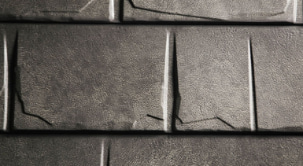

Castle Gray

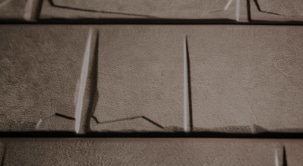

Brownstone

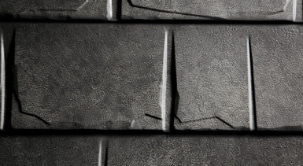

Storm Slate

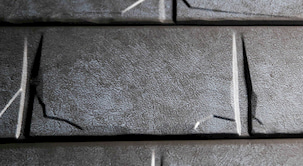

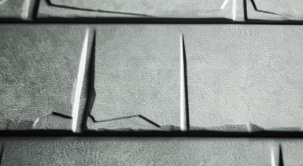

Mountain Sage
CobaltTwo Matterhorn Slate® finishes are Hi-Reflective certified, reflecting 25-26% of the sun’s rays.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Florida Approvals
FL# 21470.1
See report for requirements
See report for requirements
Hi-Reflective
Two Matterhorn Slate® finishes are Hi-Reflective certified, reflecting 25-26% of the sun’s rays.
