Your Home Needs Charming Craftsman Steel Lap Siding

Discover the timeless appeal of traditional looks with the durability of Craftsman Steel Lap Siding. Our innovative hidden fastener flange ensures a seamless finish, while the wood grain finish brings the warmth of natural wood without the maintenance. Each panel is custom created and cut to the half-inch, allowing you to perfectly clad your home in a style that suits you. Available in many colors and finishes, this steel siding installs fast, enhancing curb appeal and adding value to your home.

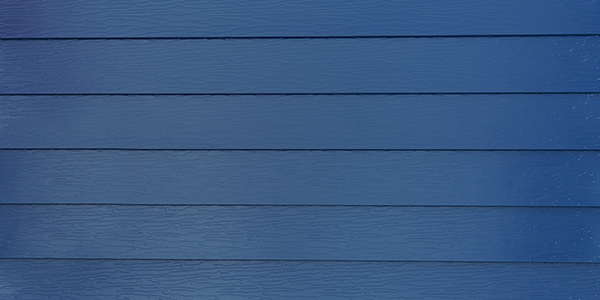

Craftsman Lap Siding Photo Product Shot 001 Assembly Overhead B

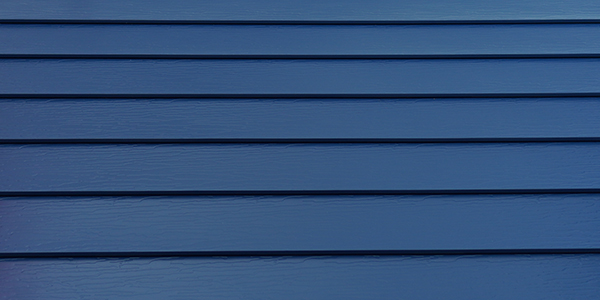

Craftsman Lap Siding Photo Product Shot 002 Assembly Front Angle B

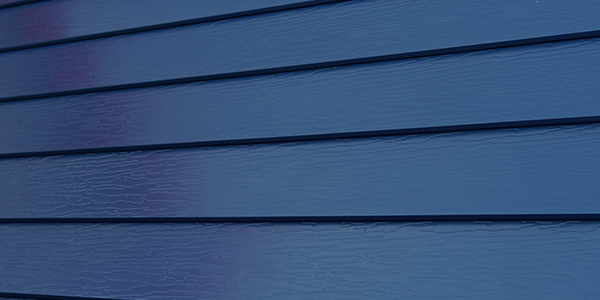

Craftsman Lap Siding Photo Product Shot 003 Assembly Side Angle B

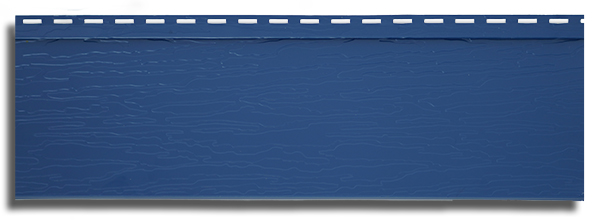

Craftsman Lap Siding Photo Product Shot 004 Panel Overhead B

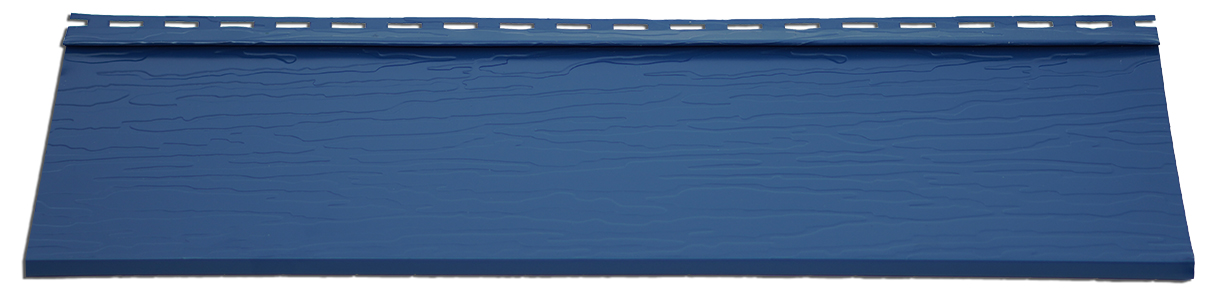

Craftsman Lap Siding Photo Product Shot 005 Panel Front Angle B

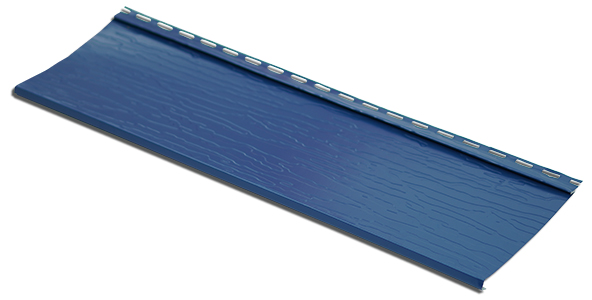

Craftsman Lap Siding Photo Product Shot 006 Panel Side Angle G

Design & Size

We provide Craftsman Steel Lap Siding custom cut to the half inch per specifications. Any length is available from 2′ up to 35′. These custom crafted panels come in 10.29″, 7.67″, and 6.12″ sizes. Thickness options include 29 and 26 gauge.

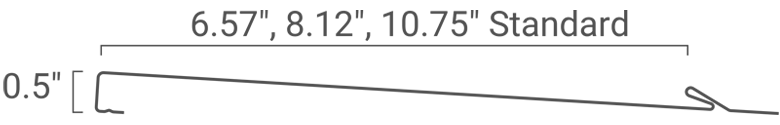

Craftsman Steel Lap Siding Size

Size

10.75", 6.57", 8.12" Width (Coverage)
Cut to Half-inch from 2'-45'

Gauge & Weight

29 Gauge - 0.80 lb / Sq Ft
26 Gauge - 1.00 Lb / Sq Ft

Warranty & Finish

Painted Craftsman Steel Lap Siding carries a 50-year paint warranty, 50-year substrate warranty, and 30-year fade/chalk warranty and has primer and Galvalume substrate under the paint. Unpainted Galvalume carries a 45-year warranty and is a 45% zinc and 55% aluminum coating with a clear acrylic overcoat.

Finish & Warranty

Painted: 50 Years
Galvalume: 45 Years

Reflectivity

25-67%
Hi-Reflective

Purpose & Use

Craftsman Steel Lap siding is most commonly chosen for residential and light commercial use. A steel substrate and hidden flange fastening system lock out wind and water.

Craftsman Steel Lap siding is designed to be installed over solid decking, but can sometimes be installed over wood battens when going over uneven surfaces.
