Decra Shake XD
Designed for style.
Engineered to Protect

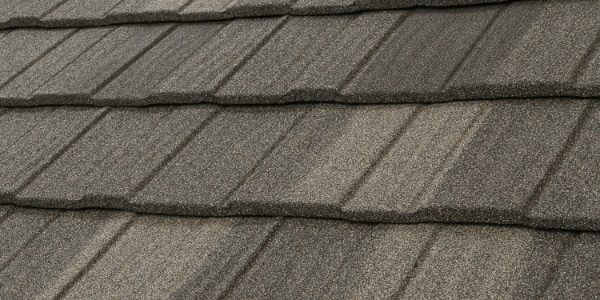

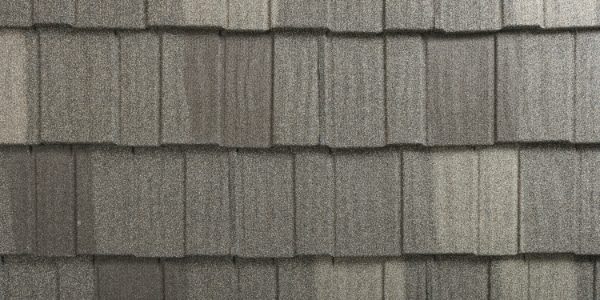

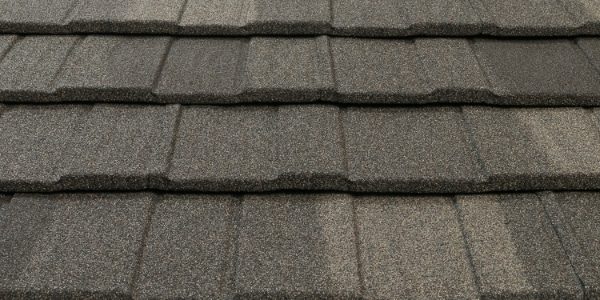

Decra Shake XD stone coated metal shake roofing emulates the classic beauty and architectural detail of a thick, rustic, hand-split wood shake. A unique hidden fastened design and proven performance merge in a durable walkable roof system. Decra Shake XD features a vented airspace that insulates to reduce utility costs and 26 gauge steel to handle hurricane winds.
Design & Size

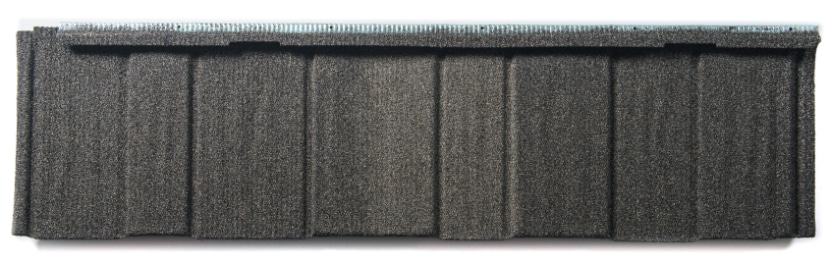

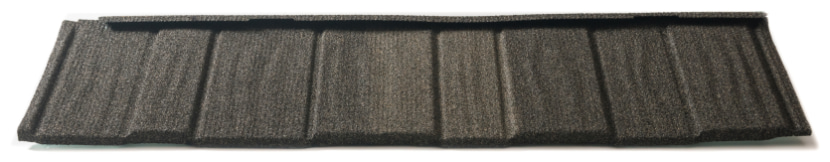

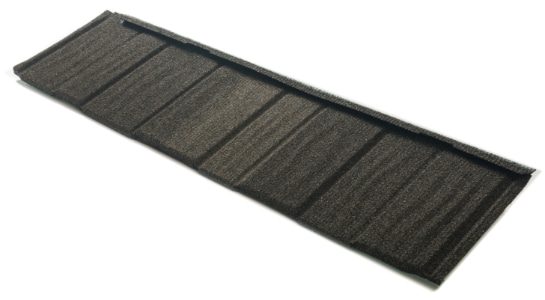

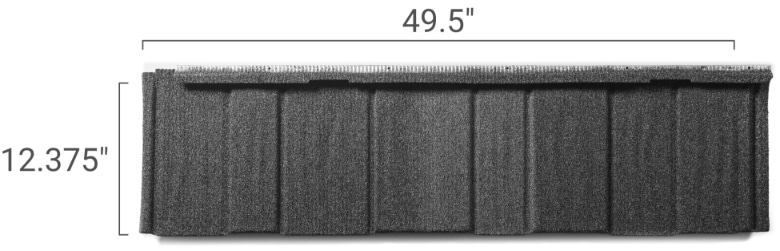

We provide Decra Shake XD by the roofing square (100 square feet). Each shingle is 14.125″ high by 52.125″ wide and covers 12.375″ high x 49.5″ wide once installed. To cover one square requires 23.4 Shake XD panels.
Size
Actual: 14.125" high by 52.125" wide
Coverage: 12.375" high by 49.5" wide
Gauge & Weight
26 Gauge – 1.5 lb / Sq Ft
Warranty & Finish
Decra Shake XD carries a lifetime limited warranty – review the warranty sheet for details. The finish is a ceramic coated stone granule protected by a clear overglaze. This granule finish is installed over a basecoat, acrylic primer, and Aluminum-Zinc alloy coated steel.
Finish & Warranty
Lifetime Limited
50 Years Transferable
Reflectivity
CRRC Reflective Available by Special Order
Vented Airspace Provides Insulation Layer
Purpose & Use
An interlocking design and hidden panel fasteners make Decra Shake XD a great choice for roofs as low as 3:12. Decra Shake XD is designed for installation on solid deck applications.
Decra Shake XD is most often chosen for residential applications but also functions at a high level for light commercial and church applications as well.
Shake XD is Florida and Miami-Dade Hurricane Zone approved as well as passing both Texas Windstorm and UL90 wind uplift testing.
Minimum Slope
3:12
Substrate
Solid Deck
Florida Approvals
Florida Building Code
Miami-Dade Hurricane Zone
Intent
Residential
Light Commercial
Colors

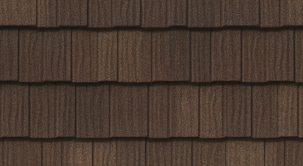

Antique Chestnut

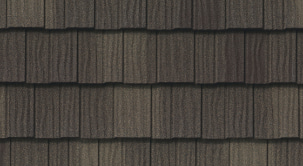

Pinnacle Grey

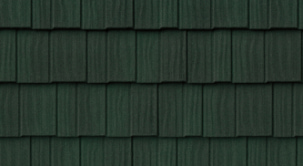

Woodland Green

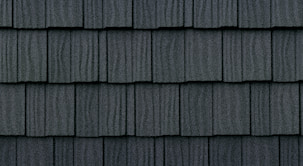

Midnight EclipseNone of the standard Decra Shake XD® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
Color accuracy is limited by scanning and viewing conditions.
Actual samples available on request.
Resources
Primarily PDF downloads, these resources provide general, installation, and testing data.
General
Installation
Testing: UL Listed
UL 2218
Class 4 Impact Resistance
Class 4 Impact Resistance
UL 790
Class A Fire Resistance Rating
Class A Fire Resistance Rating
UL 580
Class 90 Wind Uplift
Class 90 Wind Uplift
Testing: Miami-Dade Approvals
NOA# 23-0207.04
See report for requirements
See report for requirements
Testing: Florida Approvals
FL# 9759.1
See report for requirements
See report for requirements
Hi-Reflective
None of the standard Decra Shake XD® finishes are Hi-Reflective certified, though the system does feature a vented air space for insulation value. Several special order CRRC reflective colors are available.
